Rapidly develop high-fidelity real-time control applications for vehicle control units (VCUs) or traction control units (TCUs). Quickly implement localization and motion planning, including Multifunction Vehicle Bus (MVB) and Wire Train Bus (WTB) networks, to accelerate innovation and testing of next-generation railway systems.
Hardware-in-the-loop simulation of physical systems, including the powertrain, vehicle dynamics, and power electronics, enables automated testing of VCUs and simulations of different measurement or fault scenarios for predictive maintenance. Speedgoat solutions enable engineers to accelerate innovation and testing of next-generation designs, improving reliability, train network efficiency, and passenger experience.
“With the Speedgoat system, we can seamlessly reuse Simulink® and Simscape™ models in a HIL environment. The process of improving and update these HIL simulators is faster than before, allowing us to increase the quality of our production software while reducing the development time and effort.” Ion Larrañaga, Head of SW R&D CAF, Power & Automation
“With the Speedgoat system, we can seamlessly reuse Simulink® and Simscape™ models in a HIL environment. The process of improving and update these HIL simulators is faster than before, allowing us to increase the quality of our production software while reducing the development time and effort.”
Ion Larrañaga, Head of SW R&D CAF, Power & Automation
Get Started:

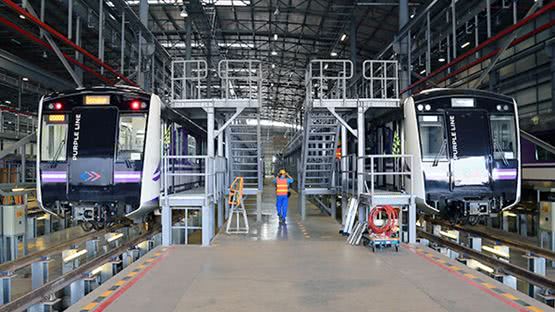

Rapid Control Prototyping (RCP) of next generation control units
MATLAB® and Simulink® Real-Time™ enable you to rapidly build, run, and test novel control strategies for your vehicle control units (VCUs), traction control units (TCUs) or Automatic Train Operation (ATO).
⮕ Learn more about RCP
Hardware-in-the-Loop (HIL) simulation of complete vehicles and vehicle components
Emulate your complete physical vehicle, including electrical, mechanical, and hydraulic components. Simulate complex models in real-time, including MVB and WTB communication protocols, to validate traction control management systems and replay test data from real measurements. Test and verify operating and fault conditions, including electrical faults and grid transients.
⮕ Learn more about HIL

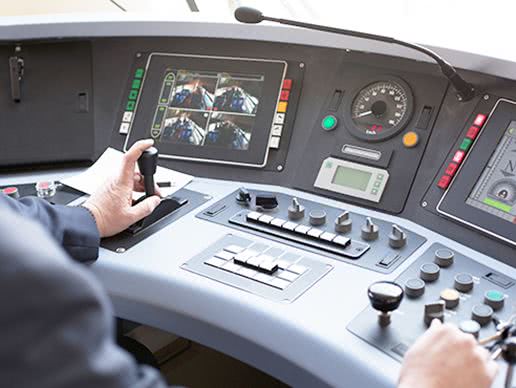

Rapidly design and test next-generation control designs for vehicle control units (VCUs)—including programmable logic controllers (PLC)—on modular real-time prototyping hardware with seamless Simulink® workflow integration.
Simulate physical plants and environments in real-time, from vehicle dynamics and powertrains to higher fidelity electric motors and highest fidelity fast switching power electronics.
Develop and test next-generation concepts for automated train operation with secure and precise localization and motion planning, including speed sensing, visual odometry, GNSS, or 5G by using rapid prototyping. Easily access CSS onboard applications for trackside-related functions (COAT).
Design simulate and test energy transmission, storage, and protection systems for hybrid and fully electric locomotives using Simscape™ Electrical™. Develop current technologies or innovate novel transportation solutions like Hyperloop, which uses magnetic levitation and vacuum tubes.
Rugged real-time target machines, with a large variety of modular I/O interfaces for desktop and mobile in-vehicle use.

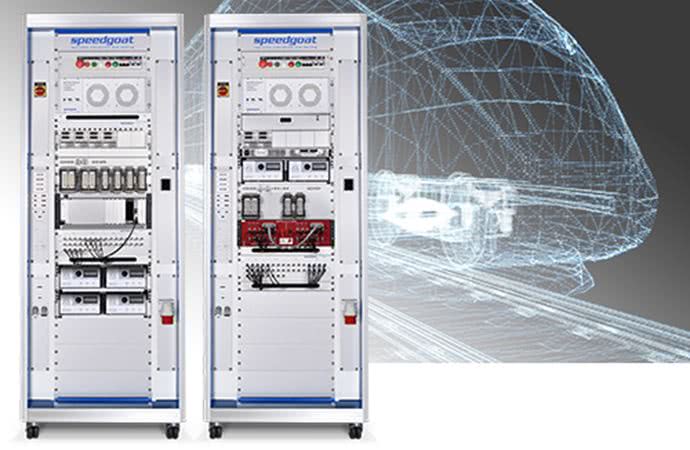

Configure real-time computers with your required collection of I/O and signal conditioning, for control prototyping at your desk or as a custom-built rack installation for automated testing of your physical model.
Over 150 different I/O and protocol interfacing solutions are supported, including railway industry protocols such as CAN, MVB, Modbus, EtherCAT, EtherNet/IP, real-time UDP, UART/Serial, and PROFINET.
