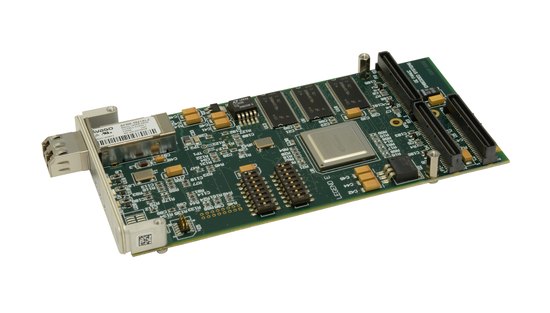

IO907

High-Speed Shared Memory Technology I/O Module

The IO907 I/O module is a fast, shared memory I/O module with Simulink® driver blocks, providing high-speed data transfer between two or multiple real-time target machines or third-party nodes.

The highly scalable shared memory technology supports up to 256 nodes.

Low latency, deterministic data transfer rates will enable you to achieve predictable, high-performance applications.

This I/O module is ideal for multiple-target applications and hardware-in-the-loop simulations using MATLAB® and Simulink®.

Key Features

  • 2.125 Gbaud serial connection speed
  • Up to 100 Mbyte/s sustained data rate
  • Deterministic transfer rate with low latency between nodes
  • Error management and detection protects against data loss
  • Interrupt transfers support all nodes
  • 256 Mbytes of onboard SDRAM

Physical
Form factor PMC
Power requirements 2.3 W typical, 3 W maximum at 3.3 V
3.5 W typical, 4.5 W maximum at 5 V
Bus PCI bus 32-bit/33 MHz, Revision 2.2 compliant
Connectors Duplex LC connector 850 nm (Multimode)
Transmission Fiber optics
Technical
RAM 256 MByte
Data rate Up to 100 Mbyte/s (DMA)
Environmental
Operating temperature 0 °C to 65 °C
Relative humidity 20 to 80 %, non-condensing
Reliability
Mean time between failures (MTBF)*
  • 1,307,078 hours (2B907)
  • 1,571,709 hours (2G907)
*MTBF values shown are based on calculation according to MIL-HDBK-217F and MIL-HDBK-217F Notice 2. Environment: GB 20°C. The MTBF calculation is based on component FIT rates provided by the component suppliers. If FIT rates are not available, MIL-HDBK-217F and MIL-HDBK-217F Notice 2 formulas are used for the FIT rate calculation.
Item ID Product Name Components
2G907X* IO907
  • 1x IO907
  • 1x 3 m LC-LC fiber optic patch cable
  • Driver block library for Simulink® Real-Time™
  • Comprehensive documentation and Simulink® example models
  • Installation into the real-time target machine


Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

  • 5 = Mobile real-time target machine
  • 6 = Performance real-time target machine
  • 8 = Baseline real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.


IO907: High-Speed Shared Memory Technology I/O Module

Included in the Delivery

Common Applications

  • Rapid control prototyping
  • Hardware-in-the-loop (HIL) simulation
